This procedure will help to determine if the heater element is defective on the A22 Lane Machine.
Step 1

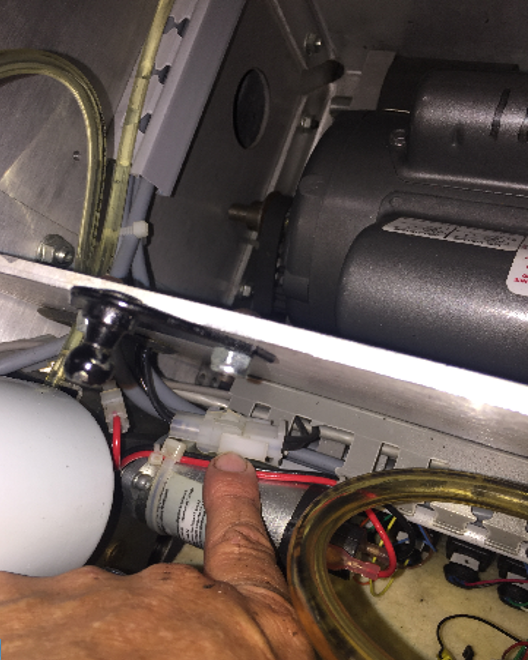

From the operator’s side of the lane machine locate and disconnect the heater connection.
Step 2

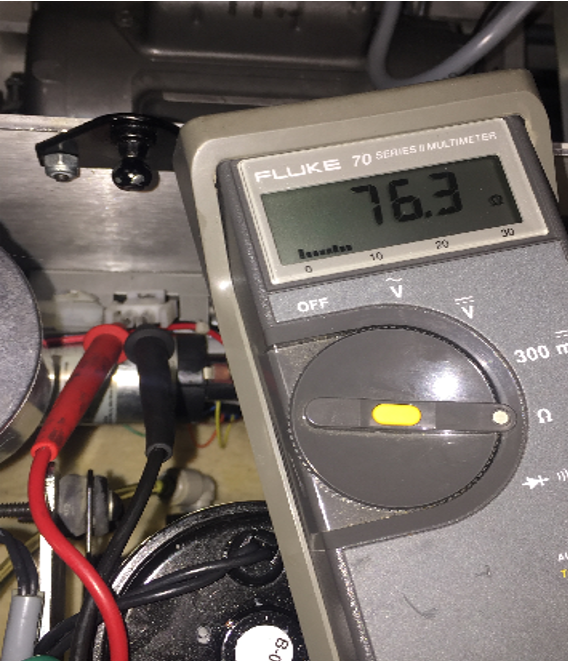

Using a digital voltage meter set the meter to the ohm setting, probe the two male pins of the heater connector.
74 +/- 6 Ohms for 115V A22
260 +/- 15 Ohms for 230v A22
Note: The photos are for a 115-volt lane machine.
