Phoenix LT4 not Conditioning

The Phoenix Lite LT4 lane machine can suddenly stop conditioning. This issue may occur if the tank was removed (for cleaning or changing wicks) and reinstalled incorrectly in the machine.

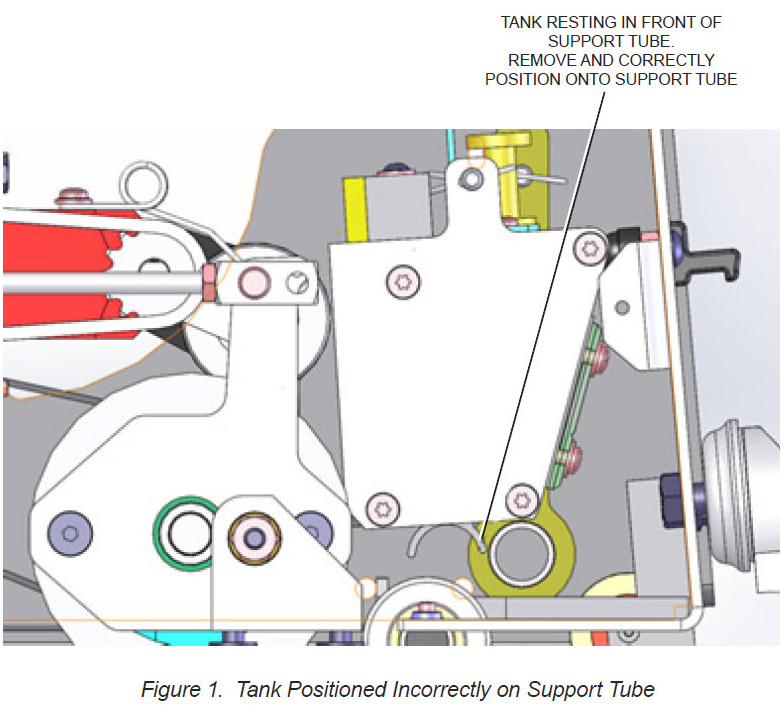

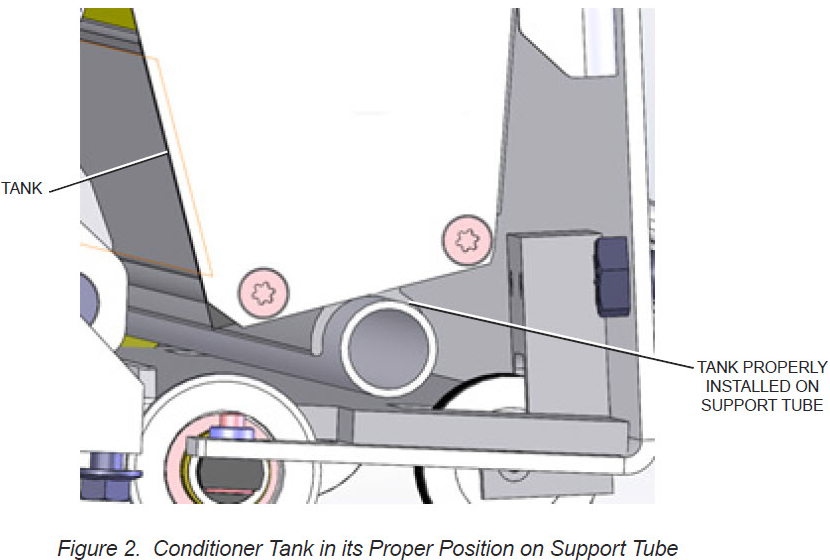

The tank must be mounted correctly on the support tube so that it rests properly against the transfer roller. An improperly mounted tank will ultimately result in the conditioner not being applied to the lane surface. It is possible to align the tank with its retaining bracket, yet still install the tank incorrectly. Refer to Figures 1 and 2.

It is easiest to check for proper mounting with the machine in the upright or storage position. In this position you can see the bottom of the oil tank and the support tube that it is resting on.
